Description of the data associated with the article Multi-scenario interpretations from sparse fault evidence using graph theory and geological rules

G. Godefroy, G. Caumon, F. Bonneau & G. Laurent

Corresponding article

Godefroy, G., Caumon, G., Bonneau, F & Laurent, G., (2020). Multi-scenario interpretations from sparse fault evidence using graph theory and geological rules. submitted to JGR: Solid Earth.

@article{Godefroy2020submJGR,
 author = {Godefroy, Gabriel and Caumon, Guillaume and Laurent, Gautier and Bonneau, François},
 journal = {submitted to JGR: Solid Earth},
 title = {Multi-scenario interpretations from sparse fault evidence using graph theory and geological rules},
 year = {2020}
}

The seismic data is NOT available but the seismic interpretation IS

The seismic data used in this article is the property of PGS Investigação Petrolı́fera Limitada and cannot be shared along with this article. However, the seismic interpretation that we performed is provided (see Fig5). It can be easily visualized in the form of an interactive HTML page. We also provide the synthetic fault sticks used as input for the numerical experiments (Fig6 to Fig9).

The seismic interpretation was performed using SKUA-GOCAD. Software corresponding to this paper is available to sponsors in the RING software package FaultMod2. We provide the scenarios generated in the form of text files, along with Python scripts.

The Python script used to generate the Table1 is also provided.

Table 3

Number of pieces of fault evidences, corresponding simulation times and Bell number for different number of synthetic seismic lines

Figure 4

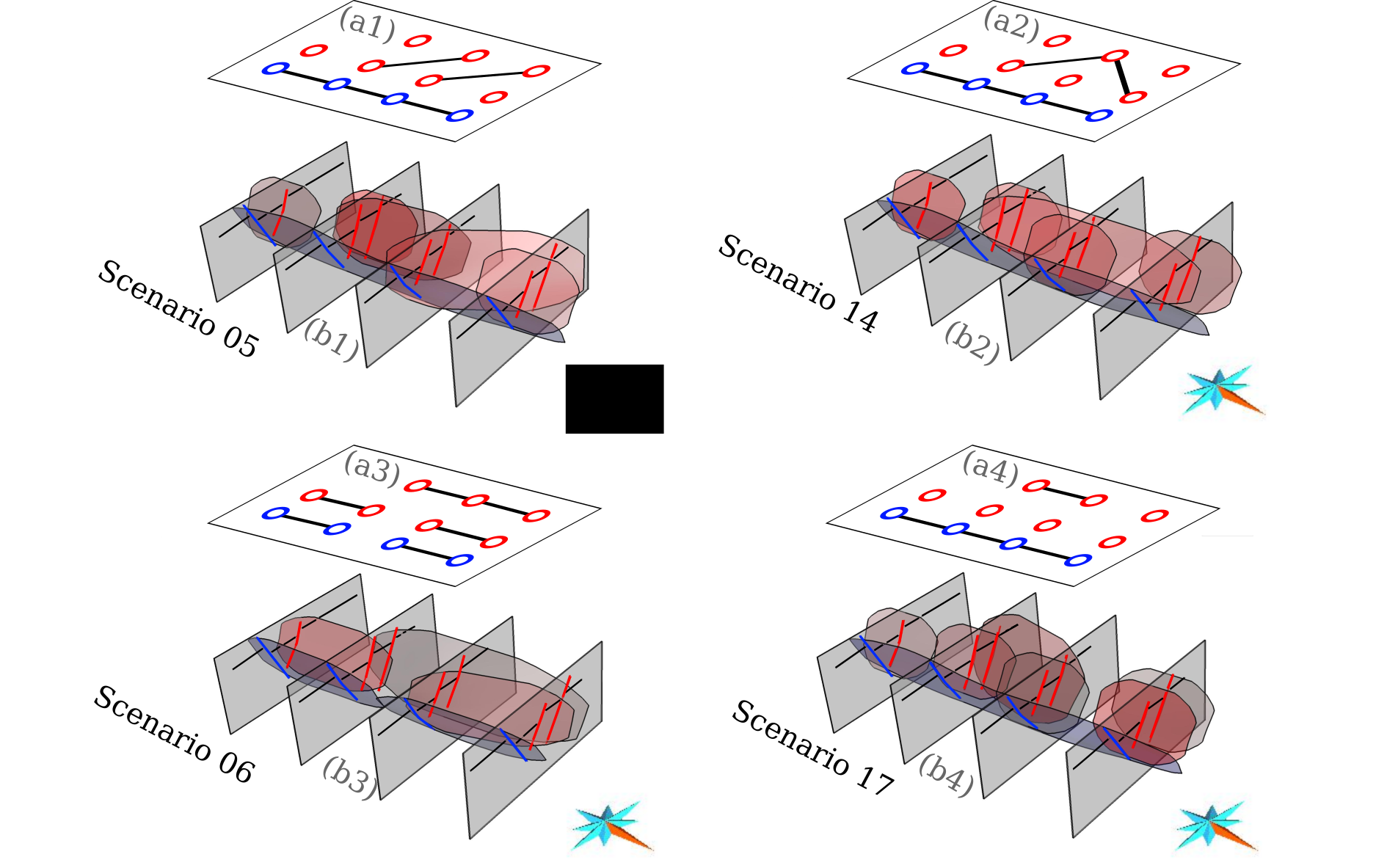

(a) The generated interpretation scenarios are represented by association graphs. (b) For each clique, a fault surface can be interpolated using the geometry of the fault evidence.

The structural models are conceptual; there is no scale.

Figure 5

Reference structural model located in the Santos Basin, offshore Brazil. (a) Available reflection seismic data (courtesy of PGS). (b) Reference fault network. (c, d) Generated interpreted synthetic parallel two-dimensional seismic lines.

3D viewer

Coordinates for the fault surfaces and synthetic interpretation (at scale)

The coordinates of the fault surfaces and synthetic fault sticks are also provided.

Fault surfaces

The text files containing the triangulated fault surfaces is format as follow:

 * First line _P T 0 0 0_:
    * _P_ is the number of points
    * _T_ is the number of triangles
 * The _P_ following lines contains the _x y z_ coordinates of the points
    * _x_ and _y_ are expressed in meters
    * _z_ is expressed in milliseconds
 * The _T_ last lines contains the description of each triangle
    * indices refers to the indices (starting at 1) of the _X_ first lines

Link to the files:

Fs01 Fs02 Fs03 Fs04
Fs05 Fs06 Fs07 Fs08
F57 F58 F59 F60
F61 F62 F63 F64
F65 F66 F67 F68
F69bis F69 F70 F71
F72bis F72 F72ter F73

Synthetic interpretation

Note: the z coordinates is in milliseconds.

Figure 6

Number of edges per fault family (φ) in the graphs of all possible associations for evidence extracted along (a) 4 seismic lines, and (b) 6 seismic lines.

Find below a 3D viewer with the graph of

The corresponding association weights are given in the text files located here
